AxCIS contact image sensor from Teledyne Dalsa

Compact high-resolution Contact Image Sensors for high-speed scans

AxCIS™ is a fully integrated line scan camera module that combines sensors, lenses and illumination in a compact, user-friendly design. Based on Teledyne's industry-leading CMOS line scan sensors, the AxCIS™ sensor enables highly integrated machine vision solutions at a low system cost for many demanding machine vision applications. The AxCIS™ is easy to use, can be installed without complex alignment and calibration and fits into a wide variety of systems, even where vertical space is limited. An excellent signal-to-noise ratio and a Camera Link HS SFP+ fibre-optic interface enable high data throughput, high reliability and long cable lengths.

Leading CMOS technology

AxCIS™ is based on linear CMOS image sensors from Teledyne, which deliver line rates of up to 120 kHz for monochrome images or 60 kHz x 2 for HDR images as well as a resolution of 900 dpi (28µm), enabling accurate defect detection even at high speeds. The sensors are pre-calibrated to the pixel size for metrology applications.

Monochrom-, HDR- or color-images

In addition to monochrome images, HDR images can be captured using a double exposure mode. One line of the sensor array is exposed longer for dark scenes and the other shorter for bright scenes. This enables better defect detection, even on highly reflective materials, with an improved dynamic range.

Colour versions delivering trilinear images are available as well .

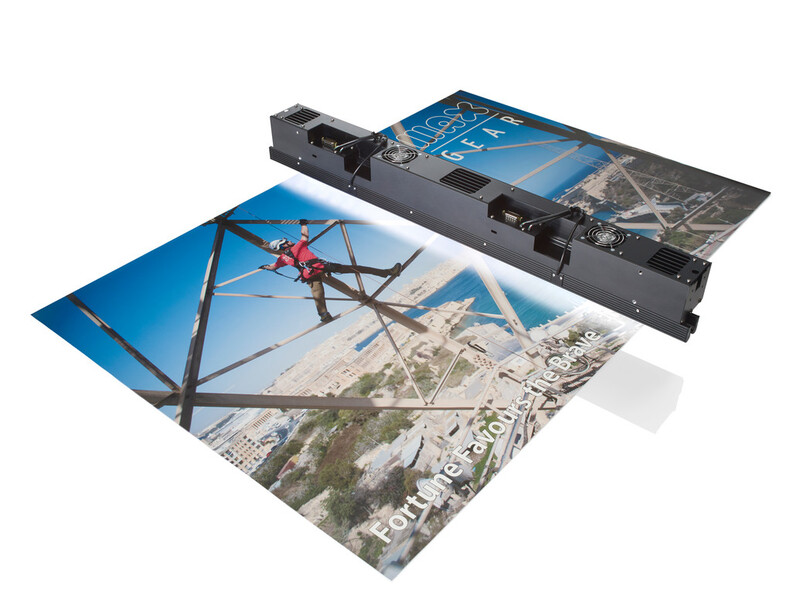

AxCIS contact Image sensor for web inspection

Large field of view without missing pixels

AxCIS™ uses a unique staggered design that is scalable for different fields of view and covers the entire field of view with no missing pixels. Each pixel has native data from real mono or colour images. Automatic tap balancing ensures a 100% seamless image with no interpolation. Due to the special design it is the only CIS on the market for real measurements.

Camera Link HS interface

The Camera Link HS SFP+ fibre-optic interface provides reliable data transmission and delivers high-resolution images over cost-effective standard cables of up to 300m. In addition fibre optic cables are insensitive to electronic noise.

A single Teledyne Xtium2-CLHS FX8 frame grabber supports up to 4 x 400 mm modules with a field of view of up to 1.6 m.

AxCIS™ is available in widths of up to 1500 mm in 100 mm increments.

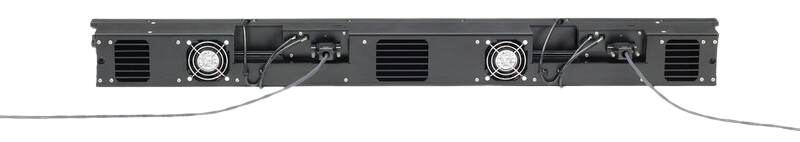

AxCIS contact image sensor rear view, connections

Application areas

Battery inspection
Print inspection
Solar panel inspection
PCB inspection
Web inspection (carbon, textile, steel strips, catalytic converters, etc.)
Foil production
Additive manufacturing
Metrology

Video

applications for AxCIS contact image sensor

Field of view	400/800/1500 mm, more available soon
Depth of field	+/- 0.6 mm
Working distance	13.9 mm
Resolution	84/42/28 µm (300/600/900 dpi)
Max. line rate	120/60 kHz (mono/HDR), 50 kHz (color)
Bit depth	8 or 12 bit selectable
Data & control	Camera Link HS SFP+ fibre up to 300 m

Light source	White LED (optional)
Dynamic range	>76 dB
Operating temperature	-0° to +50°C
Protection class	IP60
Regulatory compliance	CE, FCC, RoHS
Power supply & dissipation	+24 VDC, 46 W (400 mm), 75.3 W (800 mm), 123.7 W (1500 mm) without LED, one single cable
Dimensions (LxWxH) / weight	400 mm: 441.8x75x100 mm, 2.7 kg without LED, 3.2 kg with LED 800 mm: 841.8x75x100 mm, 5.2 kg without LED, 6.3 kg with LED 1500 mm: 1541.8x75x100mm, 10.2 kg with LED
